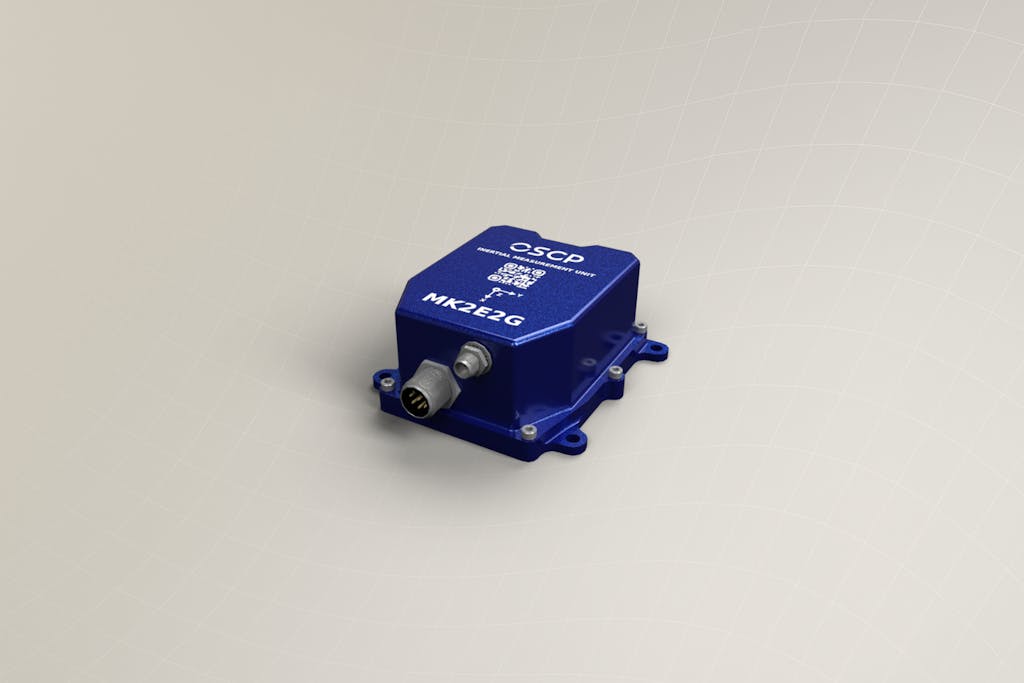

OSCP’s MK2E2G builds on the proven performance of the MK2E2 by adding multi-band GNSS capabilities for enhanced absolute navigation. By tightly coupling GNSS with the optical gyroscope technology and 11-degree-of-freedom inertial sensors, it delivers precise orientation and heading data in real time.

Even in degraded environments, the MK2E2G maintains stable, high-accuracy outputs, making it ideal for resilient navigation across harsh and complex environments.

ukraine, military, drone, combat, war, surveillance

Specifications

Performance & Technical Overview

Gyroscopes
Optical Dynamic Range ± 250 °/s
MEMS Dynamic Range From ± 125 °/s up to ± 4000 °/s
In-Run Bias Stability 0.5 °/hr
Optical Angle Random Walk 0.03 °/√hr
MEMS Angle Random Walk 0.06 °/√hr
Accelerometers
Dynamic Range ± 2 g, ± 4 g, ± 8 g, ± 16 g
In-Run Bias Stability < 30 µg
Velocity Random Walk 0.01 m/sec/√hr
Magnetometers
Dynamic Range ± 20 G
Inclinometers
Dynamic Range ± 0.5 g, ± 1 g, ± 2 g, ± 3 g
GNSS
Constellations BeiDou, Galileo, GLONASS, GPS, QZSS
Supported Protocols RTCM
Dynamic Heading Accuracy 0.3 °
Baseline Accuracy 0.01 m
Communications
Protocol RS-422 or CAN-FD
Output Data Rate Up to 500 Hz

Mechanical & Electrical Overview

Mechanical
Operating Temperature -40 °C to +70 °C
Rating IP67
Dimensions 78 x 63 x 36 mm
Weight 230 g
Electrical
Operating Voltage 12 V to 34 V
Power Consumption < 2 W
