MK2M2: MEMS Tactical-Grade IMU, ITAR-Free / OSCP

MK2M2

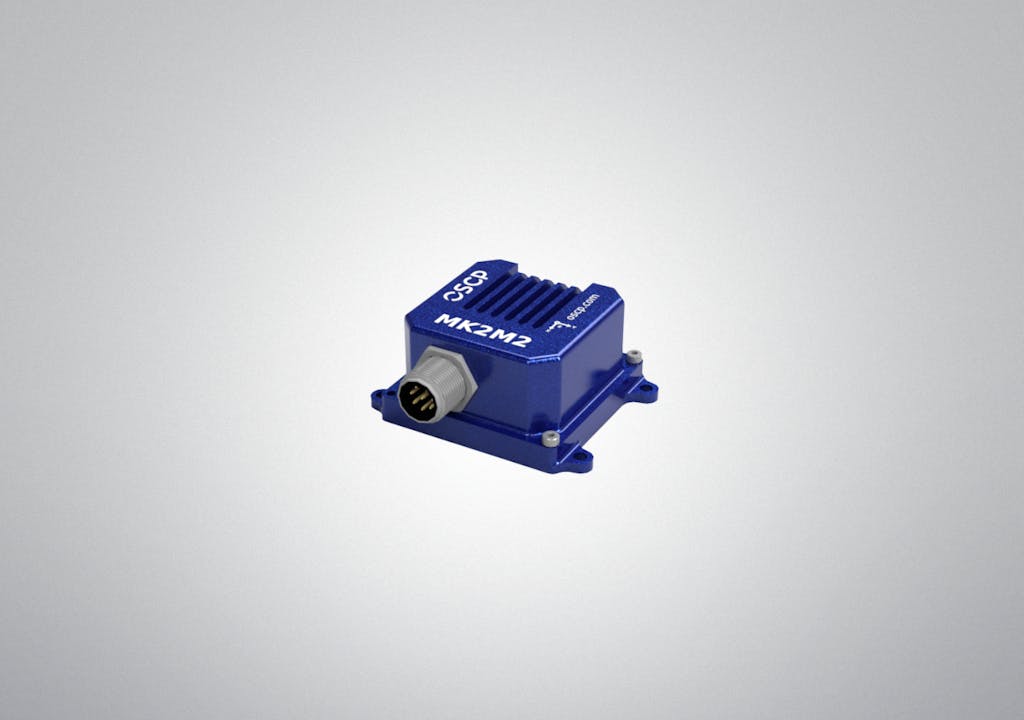

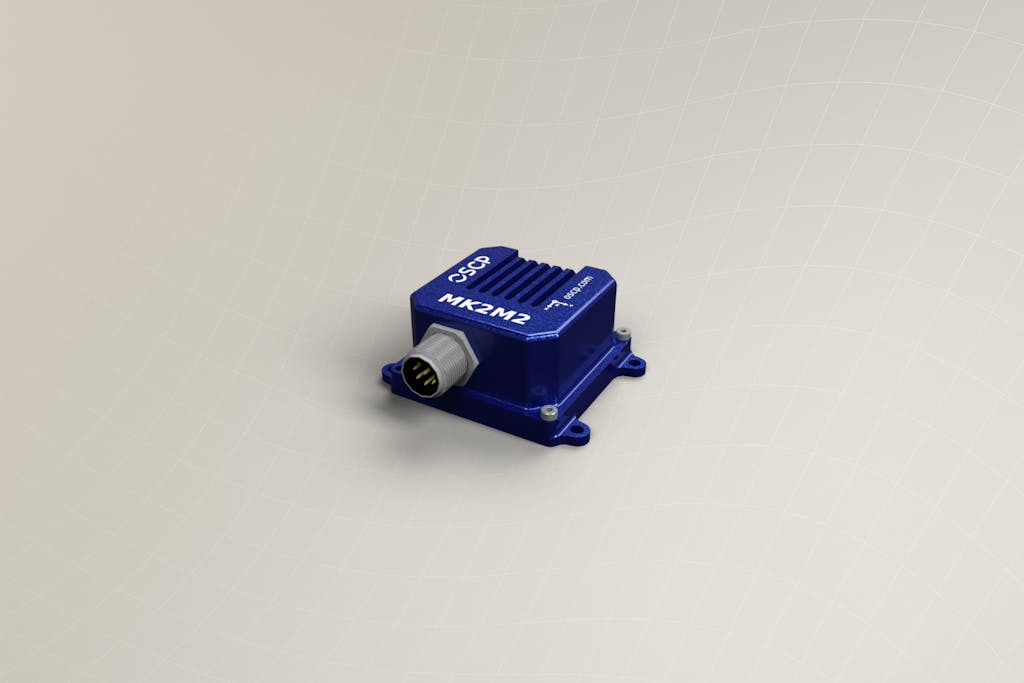

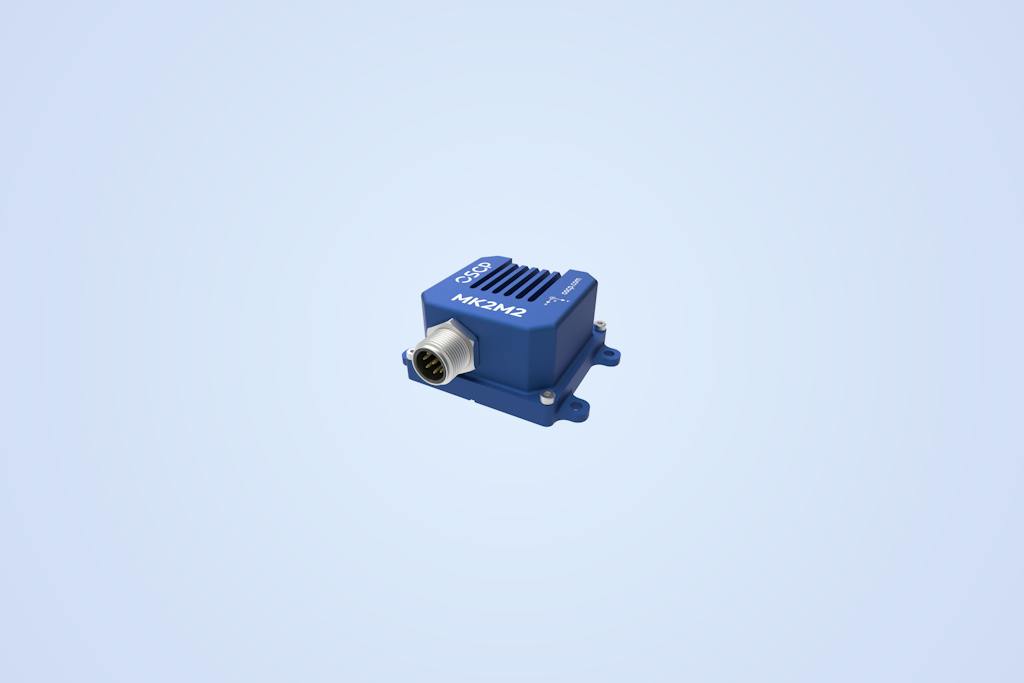

The MK2M2 is an 11-DoF MEMS IMU in a 40 x 40 x 25 mm housing, 75 g, 1.2 W. Three-axis gyroscopes, three-axis accelerometers, three-axis magnetometer and two-axis inclinometers, output over RS-422 or CAN-FD at up to 500 Hz on 12 to 34 V.

Choose it when size, weight and power drive the design and GNSS is available most of the time: drone autopilots, ground robots, rail position systems and mobile mapping payloads. In-run bias stability is under 1.0 °/hr typical, 0.5 °/hr minimum, with 0.06 °/√hr angle random walk. On a 21 minute Montreal road test with GNSS position denied, the MK2M2 finished 20.5 m from truth.

Every unit is factory-calibrated for offset, scale factor and misalignment, plus magnetometer hard and soft iron. In the field you re-run gyro offset at startup and the magnetometer after each re-install.

Key features: Built for the field

Tactical-grade MEMS

Full MEMS inertial measurement with an angle random walk of 0.06 °/√hr, calibrated and compensated over the full operating range.

ITAR-free

Designed and built in Montreal, Canada. No ITAR content. Destination export screening still applies and we clear it before shipment.

Low SWaP

40 × 40 × 25 mm, 75 g, 1.2 W. RS-422 or CAN-FD at up to 500 Hz. The smallest unit in the family, for weight- and volume-constrained platforms.

Rugged & sealed

Tested to DO-160 style profiles at 2, 4 and 8 g vibration and 20 g and 40 g shock, Class A emissions, ESD at 4 kV touch and 8 kV air. IP67 certified.

Specifications

Performance & Technical Overview

Gyroscopes
Optical Gyro Range	N/A
Optical Gyro Bias Stability	N/A
Optical Gyro ARW	N/A
MEMS Gyro Range (X, Y, Z)	±125 to ±4000 °/s
MEMS Gyro Bias Stability (X, Y, Z)	0.5 to < 1.0 °/hr
MEMS Gyro ARW (X, Y, Z)	0.06 °/√hr
Accelerometers
Accelerometer Range	±2, ±4, ±8, ±16 g
Accelerometer Bias Stability	< 15 µg
Accelerometer VRW	0.008 m/s/√hr
Magnetometers
Magnetometer Range	± 20 G
Inclinometers
Inclinometer Range	±0.5, ±1, ±2, ±3 g
Communications
Protocol	RS-422 or CAN-FD
Output Data Rate	Up to 500 Hz

Electrical & Mechanical Overview

Electrical
Operating Voltage	12 to 34 V
Power Consumption	1.2 W
Mechanical
Operating Temperature	-40 °C to +85 °C
Rating	IP67
Dimensions (Body)	40 x 40 x 25 mm
Dimensions (with Flanges)	45 x 58.5 x 25 mm
Weight	75 g

Certifications & Environmental Testing

Ingress Protection
Rating	IP67 — IEC 60529:2019
Electromagnetic Compatibility
Emissions	EN 55032 Class A · FCC Part 15 · ICES-003
Immunity	EN 55035 / CISPR 35
Vibration & Shock
Vibration	Sine sweep 20–2000 Hz up to 8 g peak, all three axes
Shock	Half-sine up to 40 g peak, 11 ms, all three axes

Resources: Documentation

Documentation: Integration & Drivers Documentation

Software resources to bring our products into your platform: a C library for direct integration, along with drivers for ROS2 and ArduPilot, with PX4 support on the way. Each comes with usage examples and the reference material needed to get data flowing quickly.

View resource: Integration & Drivers Documentation

Documentation: MK2 Series Documentation

Everything you need to work with our IMUs: mechanical drawings and footprints, performance specifications, pinout and communication interface. Documentation is available for each variant, along with a shared section covering what applies across the whole family.

View resource: MK2 Series Documentation
