MK2Z: Navigation-Grade Photonic IMU Prototype / OSCP

MK2Z

Prototype. Specifications are preliminary and subject to change.

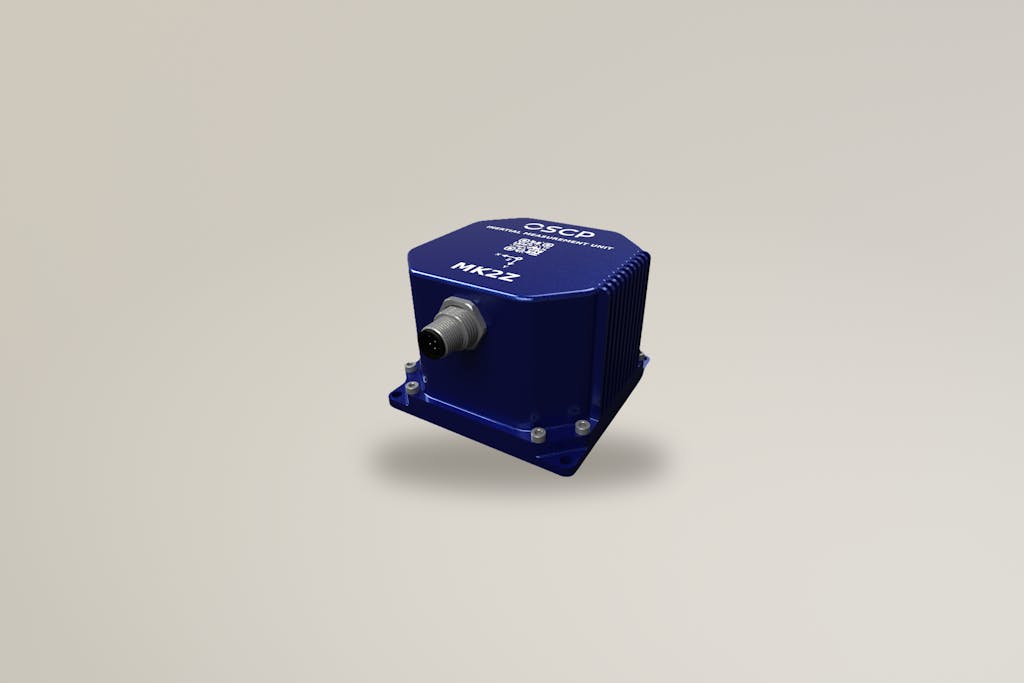

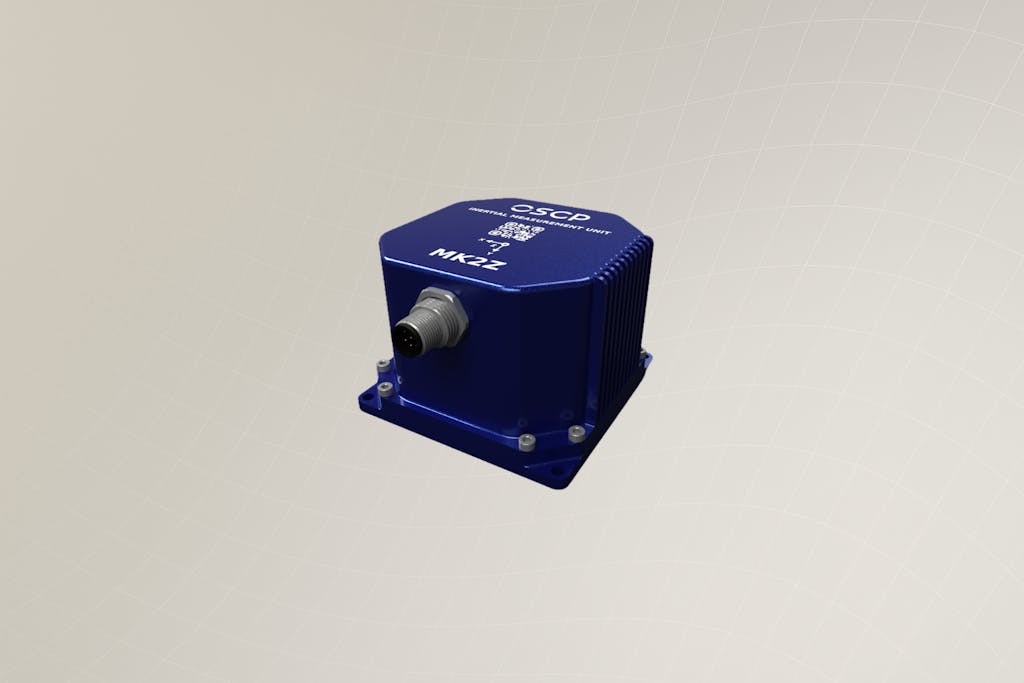

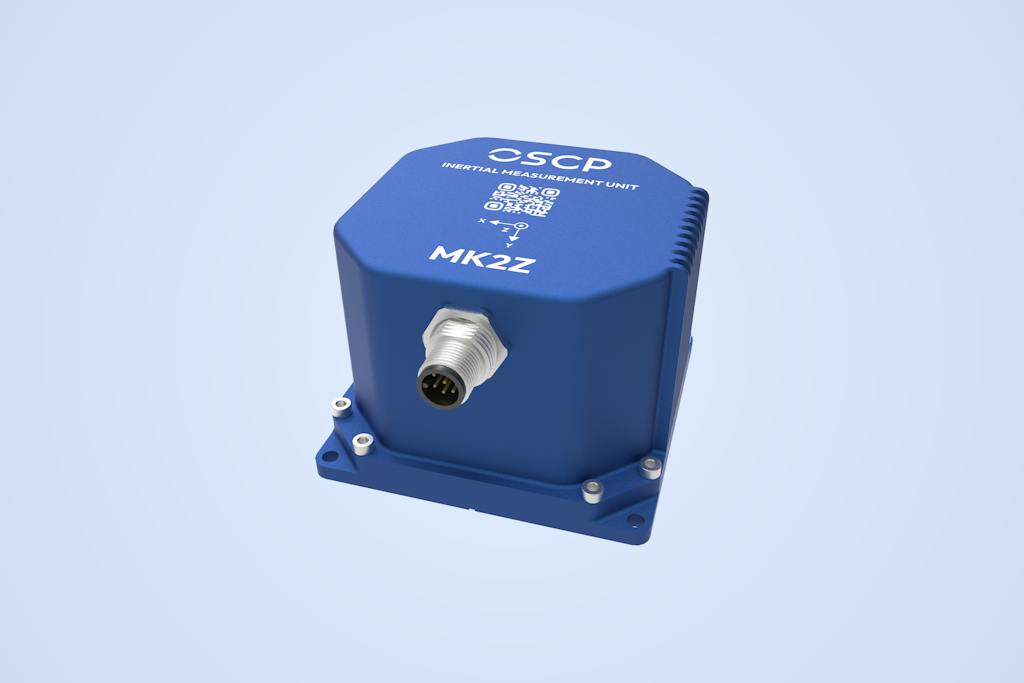

OSCP’s MK2Z is a navigation-grade prototype IMU built for demanding applications including autonomous heavy machinery, precision agriculture, construction, aerospace, defense, UAVs, marine and subsurface navigation, and health monitoring of machinery. Featuring the navigation-grade prototype optical gyroscope on the Z axis alongside accelerometers, magnetometers and inclinometers, the MK2Z targets long-term heading stability and low drift in GNSS-denied conditions.

Specifications

Performance & Technical Overview

Gyroscopes
Optical Gyro Range (Z)	± 250 °/s
Optical Gyro Bias Stability (Z)	0.005 to < 0.01 °/hr
Optical Gyro ARW (Z)	0.02 °/√hr
MEMS Gyro Range (X, Y, Z)	±125 to ±4000 °/s
MEMS Gyro Bias Stability (X, Y, Z)	0.5 to < 1.0 °/hr
MEMS Gyro ARW (X, Y, Z)	0.06 °/√hr
Accelerometers
Accelerometer Range	±2, ±4, ±8, ±16 g
Accelerometer Bias Stability	< 15 µg
Accelerometer VRW	0.008 m/s/√hr
Magnetometers
Magnetometer Range	± 20 G
Inclinometers
Inclinometer Range	±0.5, ±1, ±2, ±3 g
Communications
Protocol	RS-422 or CAN-FD
Output Data Rate	Up to 500 Hz

Mechanical & Electrical Overview

Mechanical
Operating Temperature	-40 °C to +70 °C
Rating	IP67 (certification in progress)
Dimensions (Body)	83 x 86.5 x 65 mm
Dimensions (with Flanges)	90 × 90 × 65 mm
Weight	475 g
Electrical
Operating Voltage	12 to 34 V
Power Consumption	4.5 to 7.5 W

Resources: Documentation

Documentation: Integration & Drivers Documentation

Software resources to bring our products into your platform: a C library for direct integration, along with drivers for ROS2 and ArduPilot, with PX4 support on the way. Each comes with usage examples and the reference material needed to get data flowing quickly.

View resource

Documentation: MK2 Series Documentation

Everything you need to work with our IMUs: mechanical drawings and footprints, performance specifications, pinout and communication interface. Documentation is available for each variant, along with a shared section covering what applies across the whole family.

View resource
